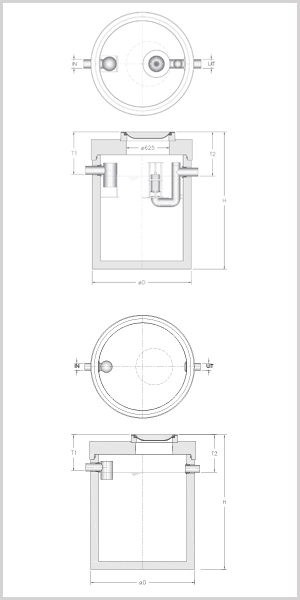

Maatvoeringen Betonput.
 |
|
Type |
Inhoud |
Diameter (uitw.) |
Hoogte (uitw.) |
Gewicht |
| 229.1021 | 580 | Ø 1000 | 1530 | 1150 kg. |
| 229.1022 | 730 | Ø 1000 | 1825 | 1400 kg. |
| 229.1023 | 860 | Ø 1000 | 2075 | 1650 kg. |
| 229.1030 | 960 | Ø 1250 | 1580 | 1550 kg. |
| 229.1031 | 1195 | Ø 1250 | 1880 | 1850 kg. |
| 229.1032 | 1565 | Ø 1250 | 2375 | 2350 kg. |
| 229.1033 | 1750 | Ø 1250 | 2590 | 2550 kg. |
| 229.1040 | 1455 | Ø 1450 | 1670 | 1950 kg. |
| 229.1041 | 1795 | Ø 1450 | 1970 | 2350 kg. |
| 229.1042 | 2150 | Ø 1450 | 2260 | 2695 kg. |
| 229.1043 | 2575 | Ø 1450 | 2640 | 3275 kg. |
| 229.1044 | 2900 | Ø 1450 | 2930 | 3550 kg. |
| 229.1050 | 2700 | Ø 1800 | 1870 | 2850 kg. |
| 229.1051 | 3200 | Ø 1800 | 2170 | 3250 kg. |
| 229.1052 | 3600 | Ø 1800 | 2420 | 3650 kg. |
| 229.1053 | 3950 | Ø 1800 | 2620 | 3950 kg. |
| 229.1054 | 4450 | Ø 1800 | 2915 | 4395 kg. |
| 229.1060 | 4900 | Ø 2300 | 1870 | 4295 kg. |
| 229.1061 | 5500 | Ø 2300 | 2140 | 4695 kg. |
| 229.1062 | 6650 | Ø 2300 | 2560 | 5500 kg. |
| 229.1063 | 7100 | Ø 2300 | 2660 | 5700 kg. |
| 229.1064 | 8000 | Ø 2300 | 2930 | 6250 kg. |
| 229.1070 | 8900 | Ø 2800 | 2110 | 7500 kg. |
| 229.1071 | 10375 | Ø 2800 | 2510 | 8400 kg. |
| 229.1072 | 12500 | Ø 2800 | 2920 | 9700 kg. |
| 229.1073 | 13450 | Ø 2800 | 3120 | 10300 kg. |
